727SSBSP-25H-T: Vortex Cooler System (Thermostat Control) (1700 BTU/h)

Technical data

Model 727SSBSP-25H-T
Rating NEMA 4X
Thermostat Option Electric
Cooling Capacity, BTU/hr 1700
Inlet, inch 1/4 F BSP (GAS)
Air Consumption @ 100 psig (l/min) 708

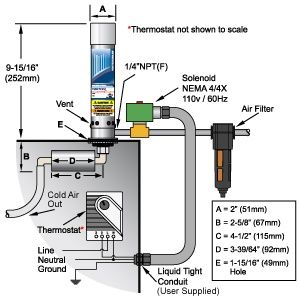

Dimension

Download

Dimension and Specifications 7x7SS (PDF file)
