7015-BSP: Vortex A/C (900 BTU/h)
Technical data
Model
7015-BSP
Rating
NEMA 4/4X
Thermostat Option
Mechanical
Cooling Capacity (BTU/hr)
900
Air Consumption @ 100 psig (l/min)
425
Maximum ambient temperature (deg C)
80
Operating noise level (dBA)
60

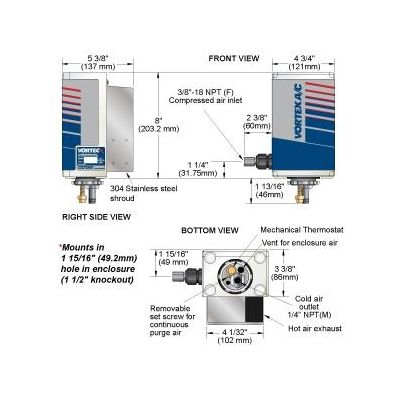

Dimension
Download
3D drawing (STEP file)
Dimension and Specifications 77x5 70x5 (PDF file)
Info request
Download complete documentation
Specifications
File 3D
Technical documentation
